Description

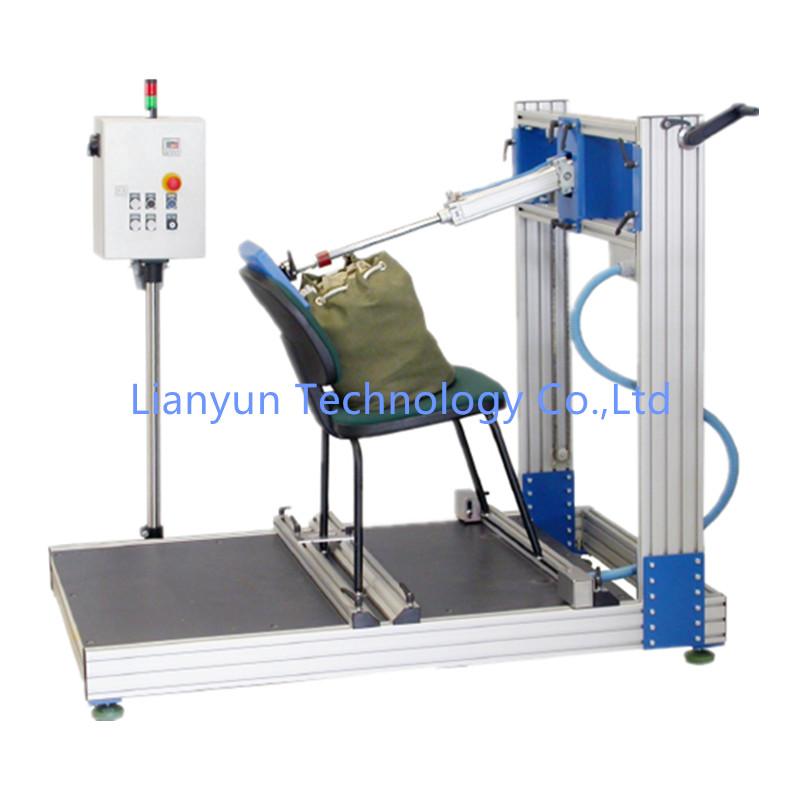

            Durability Testing Machine for Chair Backrest

Implementation Criteria:

1. QB/T2280-2007 “Office Chair” 6.6.10

2. ANSI/BIFMA X5.1-2011 “Office Furniture. General Office Chair. Test”

Technical Indicators:

1, Thrust: 0—200kg can be adjusted by controlling the air pressure

2, Force Angle: 60 ° – 90 ° can be adjusted

3, Push Back Stroke: 0—600mm adjustable

4, Support Height: 600-1500mm adjustable

5, Test Speed: 10 – 30 times / minute can be arbitrarily set

6, The Number of Tests: 0-9,999,999 times can be arbitrarily set

7, Humanized Operation Control, One-click to Complete the Test; Power-off Memory Counter to Avoid the Previous Work;

8. Control mode: PLC+ Touch Screen Control, with Stop/Disconnect Memory and Breakpoint Detection and Shutdown Function;

9, Power: 220VAC 2A, 50HZ

10. Air Source: Air Pressure: ≥0.6MPa; Flow Rate: ≥800L/min; Air Source Filtered and Dried
