Impact Test Machine For Chair

Home Mechanics Test Equipment Impact Test Machine For Chair

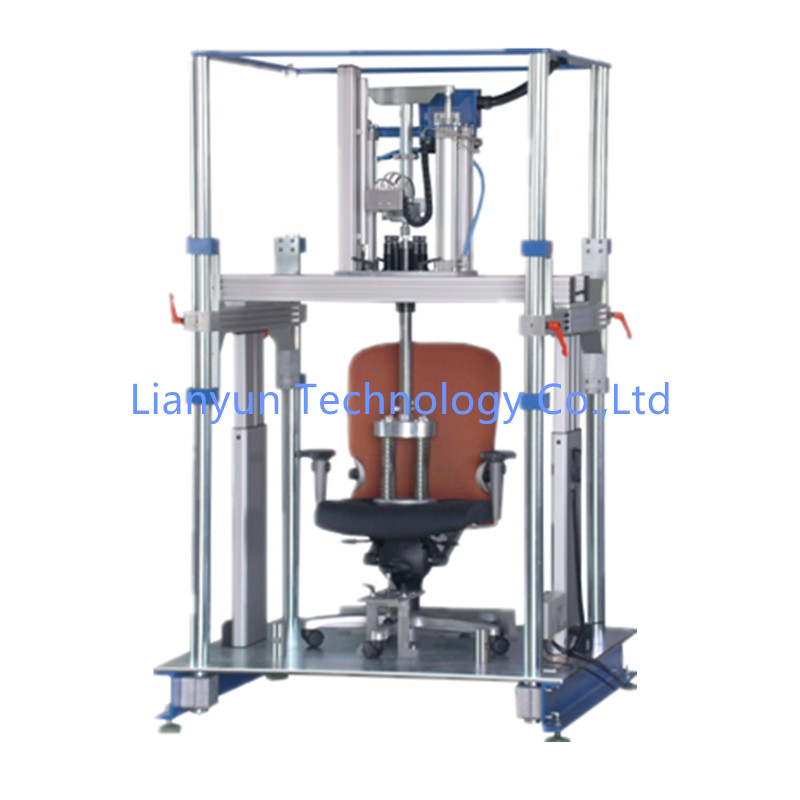

Impact Test Machine For Chair

Office Chair Seat Impact Tester


Model: LY-FM-8103


Function: Comprehensive Performance Test Project.

               Evaluate the Bearing Capacity of the Chair Test under Vertical Force.

Mechanics Test Equipment2019-08-06c90

Description



       Impact Test Machine For Chair Impact Test Machine For Chair

Implementation Standards:



1. QB/T2280-2007 6.6.3, 6.6.11 The Test Conditions, Methods and Functions Specified in the Relevant Provisions of the Standard.

2. GB/T10357.3-2013 “Mechanical Performance Test of Furniture Part 3: Strength and Durability of Chairs and Stools” 4.12

3. ANSI/BIFMA X5.1-2011 11.3 Impact Test

4. BS EN 1728:2001 6.15 Seat Impact Test



 Technical Indicators:

1. Control Mode: PLC+ Touch Screen Control, with stop/stop Power Memory and Breakpoint Detection and Shutdown Function;

2, Impact Sand Bag: Diameter 400mm, Weight 57KG sandbags

3. Impactor: 25±0.1kg

4, Static Pressure Module: Diameter 400mm, Weight 102kg sandbags

5, Impact Speed: 10-30 times / minute can be set

6, Cylinder Stroke: 0-300mm

7, Adjustable Height: 90-135cm

9, Power: 220VAC 5A, 50HZ

10. Air Source: Air Pressure: ≥0.6MPa; Flow Rate: ≥800L/min; Air Source Filtered and Dried
