Multi-function Testing Machine In Table Stype

Home Mechanics Test Equipment Multi-function Testing Machine In Table Stype

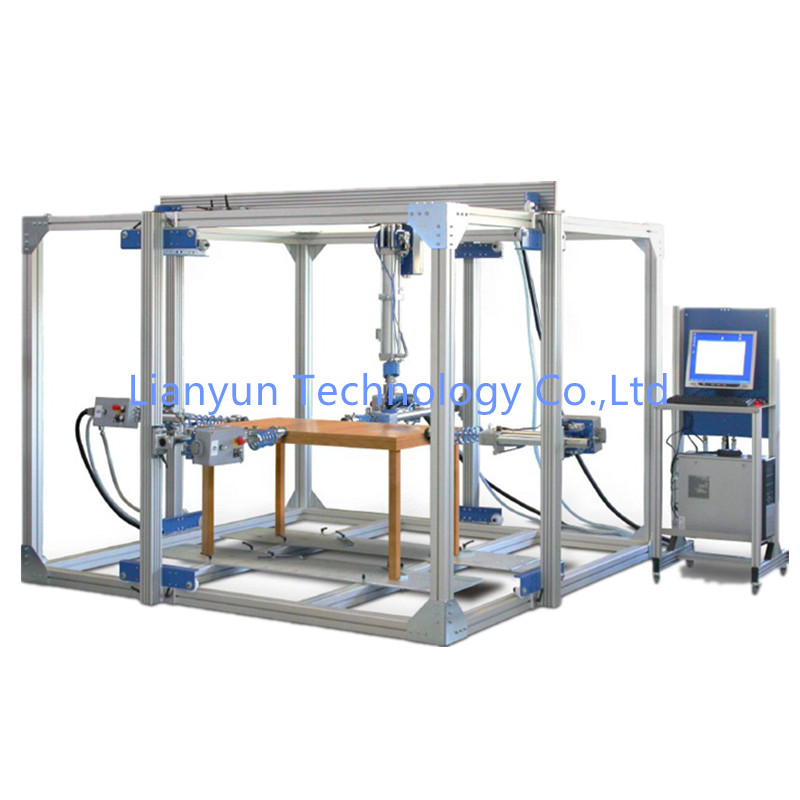

Multi-function Testing Machine In Table Stype

Model: KH-FM-8114


Function: This machine is suitable for testing the test of various table furniture used in homes, hotels, restaurants and other occasions. Simulates the strength or endurance of a single or repetitive load under normal use and habitual misuse. The position of the frame and the cylinder can be arbitrarily adjusted according to the needs, and the appropriate force can be selected according to the object to be tested. Various tests use the adjustable frame to install the cylinder and the number, select the appropriate force to test, and various tests use the adjustable frame. And install the cylinder to complete.

Mechanics Test Equipment2019-08-12c90

Description



           Multi-function Testing Machine In Table Stype



Implementation Criteria:



1. GB/Tl0357.1-2013 “Mechanical Performance Test of Furniture Table Strength and Durability”

2, GB/T10357.7-2013 – “Furniture Mechanical Performance Test Table Stability”

2. BS EN 1730-2000 “Test Methods for Strength, Durability and Stability of Household Furniture Tables”

3. BS EN 527-3-2003 “Office furniture – Workbench and tables – Part 3: Methods of test for balance and structural mechanical strength”

4. BS EN 581-3 “Outdoor furniture – camping, use of seats and tables for home and public use – Part 3: Table machinery safety requirements and test methods”





Technical Indicators:



1, Stroke: 0 ~ 300mm, 0 ~ 500mm optional cylinder settings

2, Load Capacity: 0–200kg, 0–500kg can be set arbitrarily

3, Load Weight Accuracy: 1/10000

4, System Force Measurement Accuracy: Static: ± 1%, Dynamic Force: 0-5%

5, The number of load elements: 5

6, The number of cylinders: 5

7, The pause time in each action: 0.01S—30S can be set

8, Test Speed: 5–30 times / minute can be set arbitrarily

9, The number of tests: 0—999,999 times can be set arbitrarily

10, Test Space: 3m × 2.4m × 2.5M (L × W × H) test space

11, Control Mode: Computer + Labview Software Control, with stop / power failure memory and breakpoint detection shutdown function

12, Test Results Show: computer automatic digital and curve dual display

13, Report Processing: can automatically generate test reports according to settings and customer requirements

14, Power: 220VAC 2A, 50HZ

15. Air Source: Air Pressure: ≥0.6MPa; Flow Rate: ≥800L/min; Air Source Filtered and Dried
