Description

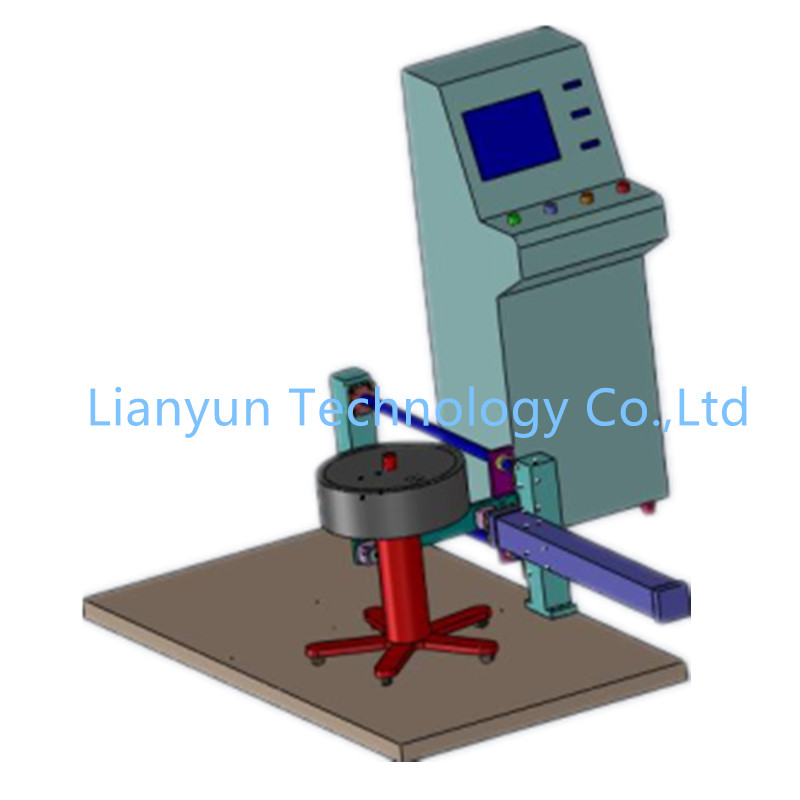

Rolling Sliding Resistance Testing Machine
Implementation Standards:
QB/T2280-2007 “office chair” 6.6.1
Technical Indicators:
1, the stroke: 0~600mm can be set
2, test speed: 550 ± 5mm / s, to be arbitrarily set
3. Force point: 200±50mm from the ground
4, the number of tests: 0-9,999,999 times can be arbitrarily set
5, motor: Panasonic servo motor
6, position sensor: 2
7. Control mode: Control mode: PLC+ touch screen control, with stop/disconnect memory and breakpoint detection and shutdown function;
8, power: 220VAC 5A, 50HZ
